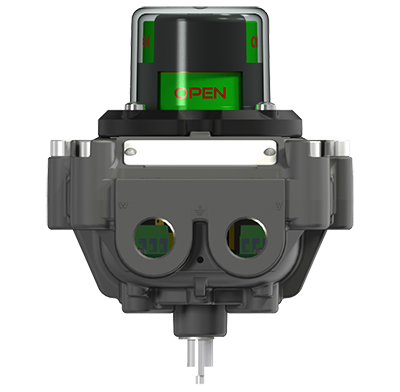

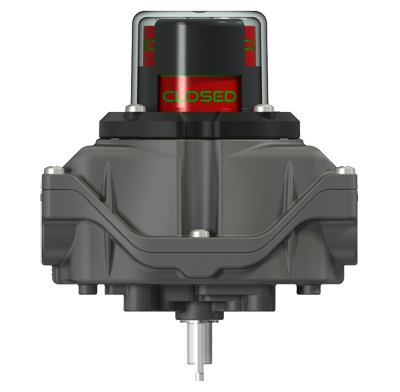

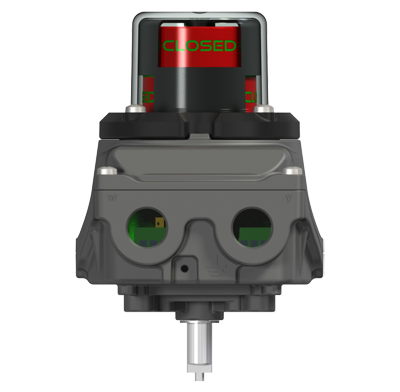

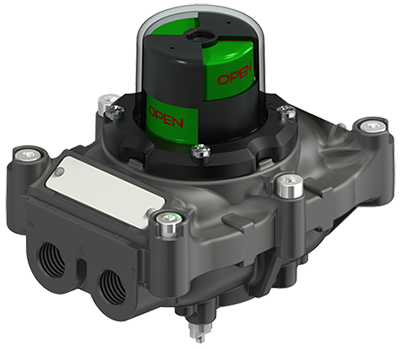

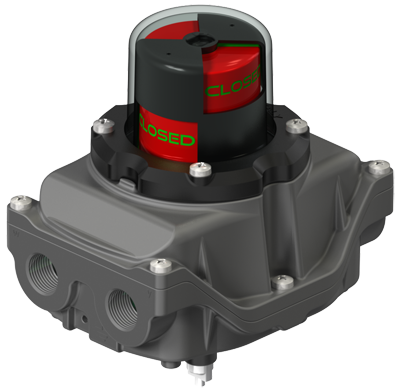

Limit switch box GP series

wheaterproof IP66-IP67

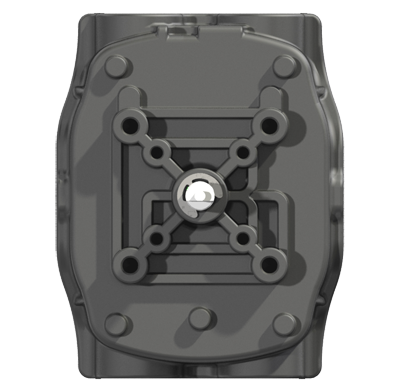

GP Guardbox Protection series heavy duty enclosures available in polyester powder coated copper free aluminium or AISI316L stainless steel designed to withstand the most extreme weather conditions. Easy wiring connection to terminal block due an innovative ergonomic design of the enclosure. Ability to have up to 4 cable entries Metric or NPT as needed. Connection to shaft according to the international standard VDI/VDE3845 and ISO F05 interface to the fixture. Wide availability of brackets also available for non standard applications. 3D indicator visible on all 4 sides and fully adjustable over 360°, captive cover locking screw in stainless steel to prevent loosing in operation. Wide range of multiple standard contacts or sensors available fixable inside. Please contact our sales team to know complete range of GP series solutions.

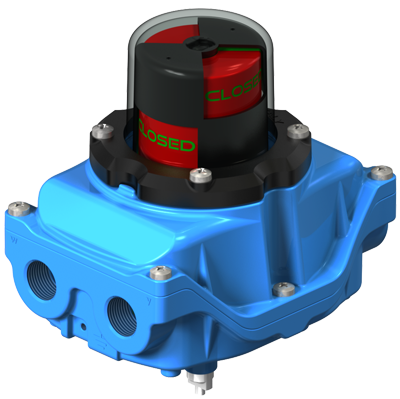

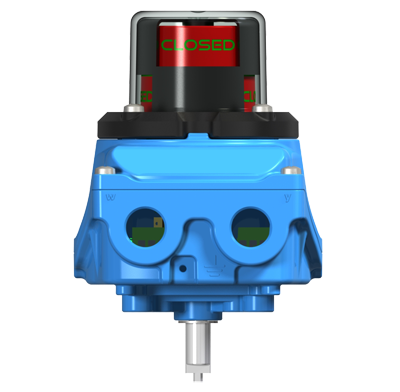

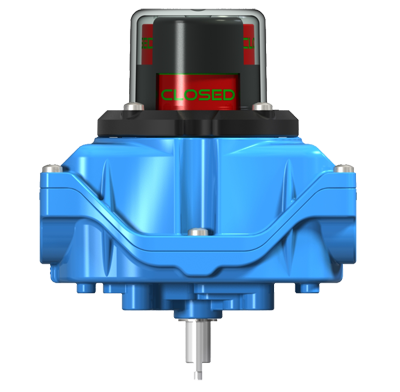

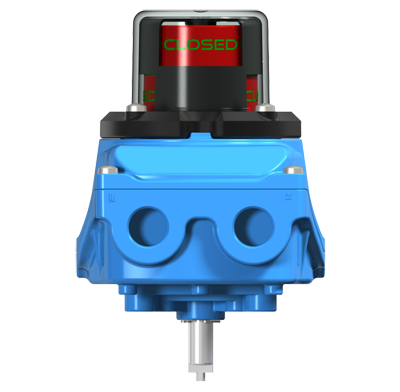

Limit switch box GI series

Ex ia intrinsically safe

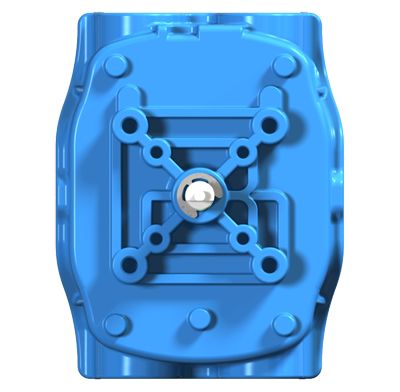

GI Guardbox Intrinsically safe series derived from GP enclosures. Specifically designed to be installed into potentially explosive atmosphere GI series are certified to be used in a dust and gas explosive area, certification will cover both enclosures and contact / sensor inside. Available in polyester powder coated copper free aluminium or AISI316L stainless steel. Easy recognizable for RAL 5015 Blue colour intrinsic safety standard. Ability to have up to 4 cable entries Metric or NPT as needed. Connection to shaft according to the international standard VDI/VDE3845 and ISO F05 interface to the fixture. 3D visual indicator visible on all 4 sides and fully adjustable over 360°, captive cover locking screw in stainless steel to prevent loosing in operation. Wide range of multiple standard contacts or sensors available fixable inside.

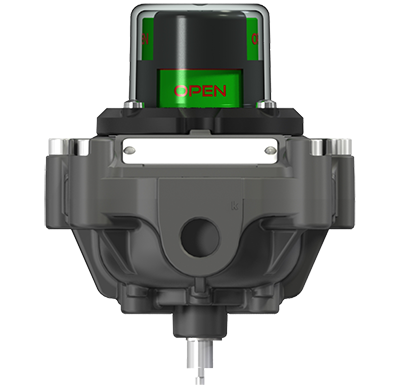

Limit switch box GD series

Explosion proof Ex d


GD Guardbox explosion proof series enclosures available in polyester powder coated copper free aluminium or AISI316L stainless steel designed to withstand the most extreme weather conditions. Specifically designed to be installed into hazardous location GD series are certified Ex d IIC to be used in a Gas and Dust explosive area. Ability to have up to 3 cable entries Metric or NPT as needed in a compact design. Connection to shaft according to the international standard VDI/VDE3845 and ISO F05 interface to the fixture. Wide availability of brackets also available for non standard applications. 3D indicator visible on all 4 sides and fully adjustable over 360°, captive cover locking screw in stainless steel to prevent loosing in operation. Wide range of multiple standard contacts or sensors available fixable inside. Please contact our sales team to know complete list of GD series solutions.


Switch type

ES type : wide range of electromechanical SPDT single pole double throw silver or gold plated contact. Available also hermetically sealed IP67 and for extremely low temperature -60°C. Available 240 VAC or 24 VDC 5....0,1 Ampere

Switch type

ED type : wide range of electromechanical DPDT double pole double throw silver or gold plated contact. Available also hermetically sealed IP67 and for low temperature-60°C. Available 240 VAC or 24 VDC 5....0,1 Ampere

Switch type

MS/MD type : Magnetic proximity SPDT (MS) or DPDT (MD) dry contact hermetically sealed switch NC/NO. Contact will change status when the magnetic field is applied (magnetic cam). Rating 120/240 VAC 0,1...5A - 24 VDC 1A...5A temperature range -60 / +105°C

Switch type

PI type: the Inductive proximity sensor detect the presence of metallic objects. Their operating principle is based on a coil and high frequency oscillator that creates a field in the close surroundings of the sensing surface. The presence of metal in front of sensor cause a change in the oscillation amplitude that change the output of the sensor. Compatible with PLC units. Available with 2/3 wires and 5...60VDC operating voltage, temperature -25 /+85 °C

Switch type

PN type : inductive proximity Namur, 2 wire non amplified sensor whose current varies in the presence of a metallic object. Their current and voltage limits allow them to be used in hazardous environments when used with approved amplifiers.Namur with 2 wire and 8,2VDC operating voltage, Available for low temperature till -50°C to 100°C

Switch type

TX type : position transmitter will convert the angular position of a shaft into a current signal 4-20 mA proportional to the angular position. The new TX Guardbox cover a full range of ATEX certified transmitters can be easily programmed with a wide possibility of integration with standard sensors or switches.

Accuracy 0,36° 8..30 VDC temperature -40 / +85°C.

Discover unique Easy on field features

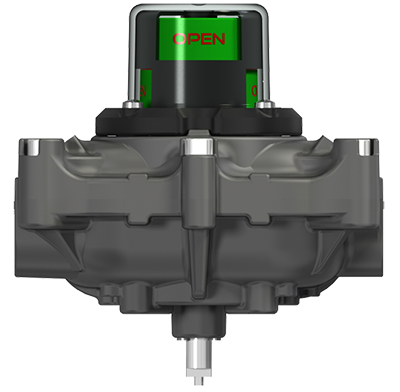

3D high visibility position indicator easy adjustable on 360° without disassembly

Discover unique Easy on field features

Easily adjustable patended cam.High resolution and metal spring free

Discover unique Easy on field features

Easy wiring to terminal strip

Discover unique Easy on field features

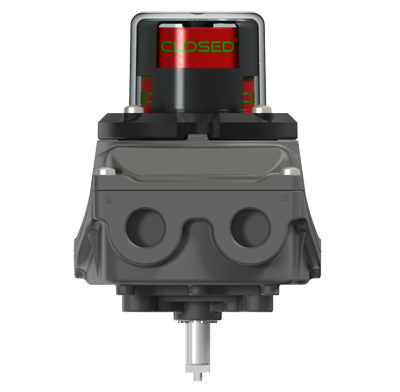

Cable entries codify by letter for an easy wiring identification

Discover unique Easy on field features

Standard 2 pole extra terminal strip for solenoid valve wiring

Quick links

On line .stp .pdf drawing, manual, wiring diagram and certification. Choose limit switch box series and download. You can access to this section using QR code printed inside the box under the cover. Easy on field access to any information or document needed.
